CASE IH STEIGER
CASE IH STEIGER

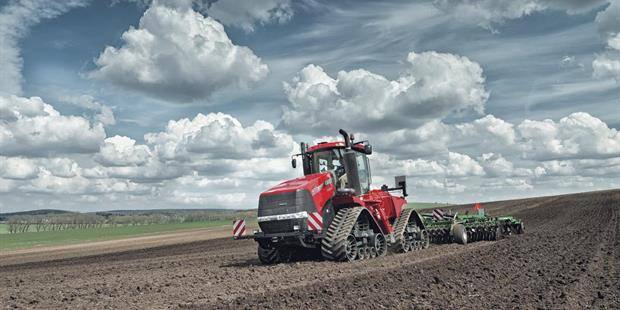

The engines in the Steiger and Quadtrac range are designed to deliver maximum horsepower, with the engine power management delivering up to 62 more horsepower if needed, for navigating undulating fields, steep roads and meeting the higher PTO and hydraulic power demands of today’s larger, more productive implements. Putting power to the ground using the unique Quadtrac design track system will minimize soil damage from the impact of using heavy equipment and maximize crop yields.
The engines in the Steiger and Quadtrac range are designed to deliver maximum horsepower, with the engine power management delivering up to 62 more horsepower if needed, for navigating undulating fields, steep roads and meeting the higher PTO and hydraulic power demands of today’s larger, more productive implements. Putting power to the ground using the unique Quadtrac design track system will minimize soil damage from the impact of using heavy equipment and maximize crop yields.
Engines
STEIGER DELIVERS POWER TO THE GROUND SEASON AFTER SEASON
The powertrain inside Steiger tractors generates everything you need to produce more and eliminates unnecessary technology. Since 2006, the largest Steiger tractors have been powered by the 12.9-liter FPT Powertrain Technologies Engine. Steiger engines have passed every test and challenge, and are built with future emission regulations in mind. This engine powers through the toughest field conditions and is now Tier 4A and Tier 4B compliant; with fuel-saving Case IH patented SCR technology for 10 percent lower operating costs than previous models. This exclusive patented technology provides you more uptime efficiency without any active regeneration required.
The powertrain inside Steiger tractors generates everything you need to produce more and eliminates unnecessary technology. Since 2006, the largest Steiger tractors have been powered by the 12.9-liter FPT Powertrain Technologies Engine. Steiger engines have passed every test and challenge, and are built with future emission regulations in mind. This engine powers through the toughest field conditions and is now Tier 4A and Tier 4B compliant; with fuel-saving Case IH patented SCR technology for 10 percent lower operating costs than previous models. This exclusive patented technology provides you more uptime efficiency without any active regeneration required.
Leading the industry
Case IH engineers listened to input from you, the customer, when designing the next-generation of Steiger® tractors.
Steiger tractors range in horsepower from 335 to 535 and are available in wheeled or QUADTRAC® configurations. These versatile models deliver on their promise of greater productivity, improved profitability, enhanced comfort and convenience and continue to provide long lasting durability, premium reliability, as well as ease of operation and serviceability.
Steiger tractors range in horsepower from 335 to 535 and are available in wheeled or QUADTRAC® configurations. These versatile models deliver on their promise of greater productivity, improved profitability, enhanced comfort and convenience and continue to provide long lasting durability, premium reliability, as well as ease of operation and serviceability.
Models
Steiger 400
Steiger 450
Steiger 500
Steiger 550
Steiger 600
Quadtrac 450
Quadtrac 500
Quadtrac 550
Quadtrac 600
Specifications
Engine Number of cylinder / type 6 / WGT 6 / WGT 6 / 2 ST Capacity (l) 12.9 12.9 12.9 Rated power ECE R120 [kW/hp(CV)] 336 / 457 373 / 508 410 / 558 Rated power ECE R120 Power Management [kW/hp(CV)] 365 / 497 403 / 548 440 / 599 Rated engine speed (rpm) 2100 2100 2100 Maximum power ECE R120 [kW/hp(CV)] 369 / 502 410 / 558 451 / 614 Maximum power ECE R120 Power Management [kW/hp(CV)] 369 / 502 410 / 558 451 / 614 at engine speed (rpm) 1900 1900 1900 Maximum torque (Nm @ 1400 rpm and @ 1500 rpm with Power Management) 2136 2374 2611 Torque rise Standard and Power Management (%) 40 40 40 Fuel tank, diesel (litres) 1200 1200 1820 Additional Fuel Filtration - - - Trasmission Type 16/2 Powershift PS4 16/2 Powershift PS4 16/2 Powershift PS6 Powershuttle Standard Standard Standard Axles Axle drive and gear arrangement Planetary & drop gear, 3 planet Planetary & drop gear, 3 planet Planetary & drop gear, 3 planet Axle diameter (mm) - - - Rear axle diff-lock type Multi disc wet plate with management system Multi disc wet plate with management system Multi disc wet plate with management system Power Take Off Type Live independent system integral with transmission Live independent system integral with transmission Live independent system integral with transmission Speeds Option 1000 1000 1000 Engine speeds Standard / Option (rpm) 2000 2000 2000 Shaft type 1 3/4" shaft - 20 spline 1 3/4" shaft - 20 spline 1 3/4" shaft - 20 spline Hydraulic System System type Variable displacement, pressure and flow compensating (PFC) Variable displacement, pressure and flow compensating (PFC) Variable displacement, pressure and flow compensating (PFC) Max. pump flow (l/min) 159 159 159 Optional pumps max.pump flow High Flow/Twin Flow (l/min) 216/428 216/428 216/428 System pressure (bar) 210 210 210 No. of remote valves 4 to 8 4 to 8 4 to 8 Three Point Hitch Max. lift capacity (kg) 8949 8949 8949 Category type Cat IV-N Cat IV-N Cat IV-N Drawbar Diameter of drawbar pin-high capacity (mm) 51 51 51 Max. permissible vertical load (kg) 4983 4983 4983 Max. permissible pulling load (kg) 22453 22453 22453 Weight Minimum unballasted shipping weight (kg) 24292 24405 24405 Permissible total weight (kg) 26308 26308 26308 Dimensions Total length (mm) 7613 7613 7613 Total height (mm) 3912 3912 3912 Total width (mm) 2997 2997 2997 Standard Tyres Front and rear - - - Tracks Drive 4 independent crawler tracks 4 independent crawler tracks 4 independent crawler tracks Track width Standard / Option (cm) 30 / 36 30 / 36 30 / 36
