CASE IH MAGNUM

 Magnum 250First launched in 1987, the Magnum Series has evolved over 28 years to become the first choice of large scale farmers and contractors who demand the best. The new Magnum powers through every task fast and efficiently, reliably delivering impressive productivity day after day. No day at the wheel will feel too long with the Magnum’s luxuriously comfortable cab, intuitive controls ergonomically laid out, quiet operator environment and smooth ride.

Models

  • Magnum 250

    Magnum 250

  • Magnum 280

    Magnum 280

  • Magnum 310

    Magnum 310

  • Magnum 340

    Magnum 340

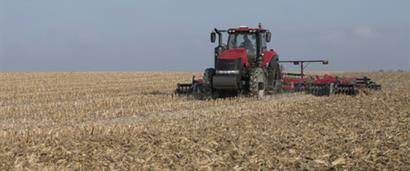

  • Magnum 340 Rowtrac

    Magnum 340 Rowtrac

  • Magnum 380 CVT

    Magnum 380 CVT

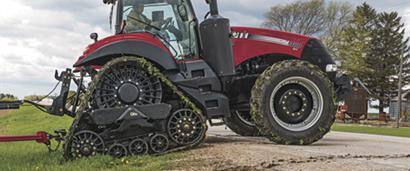

  • Magnum 380 Rowtrac CVT

    Magnum 380 Rowtrac CVT

  • SPECIFICATIONS
  • ENGINE
  • EngineFPTFPTFPT
    Number of cylinders666
    TypeCommon Rail Diesel engine with 24 valves, turbocharged and intercooledCommon Rail Diesel engine with 24 valves, turbocharged and intercooledCommon Rail Diesel engine with 24 valves, turbocharged and intercooled
    Emission levelTier 2Tier 2Tier 2
    Capacity cm? (in?)8,700 (530.9)8,700 (530.9)8,700 (530.9)
    Maximum power ECE R120 Power Management kW/hp(CV)235 / 320258 / 351281 / 382
    Maximum power ECE R120 kW/hp(CV)209 / 284232 / 315255 / 347
    At engine speed rpm1,81,81,8
    Rated power ECE R120 Power Management kW/hp(CV)210 / 286232 / 315255 / 347
    Rated power ECE R120 kW/hp(CV)184 / 250206 / 280229 / 311
    At engine speed rpm222
    Maximum torque Power Management (Nm @ 1,400-1,600 rpm)1,4071,5581,708
    Maximum torque (Nm @ 1,500-1,600 rpm)1,2291,3811,531
    Torque rise Standard / Power Management (%)40 / 4040 / 4140 / 40
    Fuel tank capacity diesel / urea litres (gal)678 / 99 (153.9 / 22.5)678 / 99 (153.9 / 22.5)678 / 99 (153.9 / 22.5)
    Transmission
    18x4 Fullpowershift 40 kphStandardStandardStandard
    19x4 Fullpowershift 40 kph Eco or 50 kphOptionalOptionalOptional
    23x6 Fullpowershift with creeper 40 kphOptionalOptionalOptional
    PowershuttleStandardStandardStandard
    Continuously variable transmission 50 kph Eco or 40 kph EcoOptionalOptionalOptional
    Rear axle diff-lock typeElectro-hydraulic with Auto controlElectro-hydraulic with Auto controlElectro-hydraulic with Auto control
    Service brakeHydraulically operated multiple wet disc brake, self adjustingHydraulically operated multiple wet disc brake, self adjustingHydraulically operated multiple wet disc brake, self adjusting
    Power take off
    Engagement typeElectro-hydraulicElectro-hydraulicElectro-hydraulic
    Speeds Standard (Option)1,000 ( 540/1,000)1,000 ( 540/1,000)1,000 ( 540/1,000)
    Engine speeds Standard (Option) rpm1,803 ( 1,592/1,803)1,803 ( 1,592/1,803)1,803 ( 1,592/1,803)
    Shaft type Standard (Option)1 3/4" 20 splines (1 3/8" 6 splines (540 rpm) or 1 3/8" 21 splines (1,000 rpm) or 1 3/4" 20 splines (1,000 rpm))1 3/4" 20 splines (1 3/8" 6 splines (540 rpm) or 1 3/8" 21 splines (1,000 rpm) or 1 3/4" 20 splines (1,000 rpm))1 3/4" 20 splines (1 3/8" 6 splines (540 rpm) or 1 3/8" 21 splines (1,000 rpm) or 1 3/4" 20 splines (1,000 rpm))
    Front Hitch and PTO
    Front PTO 1,000 Speed @ 1,804 rpmOptionalOptionalOptional
    Front hitch lift capacity kg (lbs)5,000 (11,023)5,000 (11,023)5,000 (11,023)
    Four-Wheel drive and Steering (Driveline)
    Front axle category Standard / OptionCat. 4.75 (-)Cat. 4.75 (Cat. 5)Cat. 4.75 (Cat. 5)
    Front axle suspensionOptionalOptionalOptional
    Steering angle (?)555555
    Min. turning radius track setting 1,800 mm m (ft)4.8 (15.75)5.3 (17.39)5.3 (17.39)
    Hydraulic System
    System typeVariable displacement, pressure flow compensated pumpVariable displacement, pressure flow compensated pumpVariable displacement, pressure flow compensated pump
    Max. pump flow rate Standard / High Flow / Twin Flow l/min (gal / min)166 / 221 / 282 (43.85 / 58.38 / 74.5)166 / 221 / 282 (43.85 / 58.38 / 74.5)166 / 221 / 282 (43.85 / 58.38 / 74.5)
    System pressure (bar)210210210
    Control typeElectronic Hitch Control (EHC) with hitch ride control, hydraulic top link, automatic stabilizers optionalElectronic Hitch Control (EHC) with hitch ride control, hydraulic top link, automatic stabilizers optionalElectronic Hitch Control (EHC) with hitch ride control, hydraulic top link, automatic stabilizers optional
    Max. lift capacity (kg) (lbs)8,843 (19,495.5)8,843 (19,495.5)9,705 (21,395.8)
    OECD lift capacity through range @ 610 mm kg (lbs)7,934 (17,491.5)7,934 (17,491.5)8,709 (19,200.0)
    Max. number of rear remote valves4 electronic remote valves standard, 5th and 6th optional - power beyond or low pressure return connection with individual remote valve timer and flow controls4 electronic remote valves standard, 5th and 6th optional - power beyond or low pressure return connection with individual remote valve timer and flow controls4 electronic remote valves standard, 5th and 6th optional - power beyond or low pressure return connection with individual remote valve timer and flow controls
    Remote valve timer control0 - 30 seconds on all models0 - 30 seconds on all models0 - 30 seconds on all models
    Category typeCat IIICat III / IVN optionalCat III / IVN optional
    Slip controlOptionalOptionalOptional
    Weight
    Approximate shipping weight standard / suspended front axle kg (lbs)10,830 / 11,290 (23,876 / 24,890)10,910 / 11,415 (23,876.4 / 25,165.7)10,910 / 11,415 (23,876.4 / 25,165.7)
    Class 5 (option) / Class 5 suspended front axle kg (lbs)- / -10,985 / 11,450 (24,217.8 / 25,242.9)10,985 / 11,450 (24,217.8 / 25,242.9)
    Magnum 340 with Heavy Duty Rear Axle kg (lbs)- / -- / -- / -
    Approximate shipping weight Class 5 / Class 5 suspended front axle (kg) (lbs)- / -- / -- / -
    Permissible total weight Class 4.75 / Class 5 front axle kg (lbs)17,530 / - (38,647 / -)17,530 / 17,850 (38,647 / 39,352.5)17,530 / 17,850 (38,647 / 39,352.5)
    Max. permissible weight front Class 4.75 / Class 5 front axle kg (lbs)6,030 / - (13,293.9 / -)6,030 / 6,350 (13,293.9 / 13,999.3)6,030 / 6,350 (13,293.9 / 13,999.3)
    Max. permissible weight rear kg (lbs)11,500 (25,353.1)11,500 (25,353.1)11,500 (25,353.1)
    Dimensions
    Total length only carrier / front hitch / front weights mm (inc)6,015 / 6,295 / 6,225(236.8'' /247.8'' / 245.1'')6,015 / 6,295 / 6,225 (236.8'' / 247.8'' / 245.1'')6,015 / 6,295 / 6,225 (236.8'' / 247.8'' / 245.1'')
    Total length with Heavy Duty rear axle mm (inc)- / - / -- / - / -- / - / -
    Total height mm (inc)3,105 (122,2'')3,375 (132.9'')3,375 (132.9'')
    Total width (across rear fenders extension) mm (inc)2,550 (100,4''2,550 (100,4'')2,550 (100,4'')
    Min./Max. width (across rear fenders extension) mm (inc)- / -- / -- / -
    Wheel base standard / heavy duty rear axle mm (inc)3,105 / - (122.2'' / -)3,105 / - (122.2'' / -)3,105 / - (122.2'' / -)
    Height at centre of rear axle to highest point mm (inc)2,488 (97.9'')2,488 (97.9'')2,488 (97.9'')
    Height to centre of drivewheel mm (inc)---
    Track setting front (mm) (inc)1,560 - 2,256 (61.4'' - 88.8'')1,560 - 2,256 (61.4'' - 88.8'')1,560 - 2,256 (61.4'' - 88.8'')
    Track setting rear (mm) (inc)1,470 - 2,294 (57.9'' - 90.3'')1,470 - 2,294 (57.9'' - 90.3'')1,470 - 2,294 (57.8'' - 90.3'')
    Standard Tyres
    Front600 / 65 R28600 / 70 R30600 / 70 R30
    Rear620 / 70 R42620 / 70 R42620 / 70 R42
    Track
    Available track width cm (ft)---
    Available row spacing cm (ft)---
